Constant Temperature Water Bath

Constant temperature water bath is widely used for the drying, concentration, distillation and impregnation of chemical reagent and biological product, as well as constant-temperature heating and other thermal tests. Besides, this water bath is an essential tool for biology, inheritance, aquatic product, environmental protection, sanitation, biochemistry lab, analyzer room, education and scientific research.

  • Steel and brass tubes are used in the heat sensor which are both high sensitivity and quick heat transferring materials.

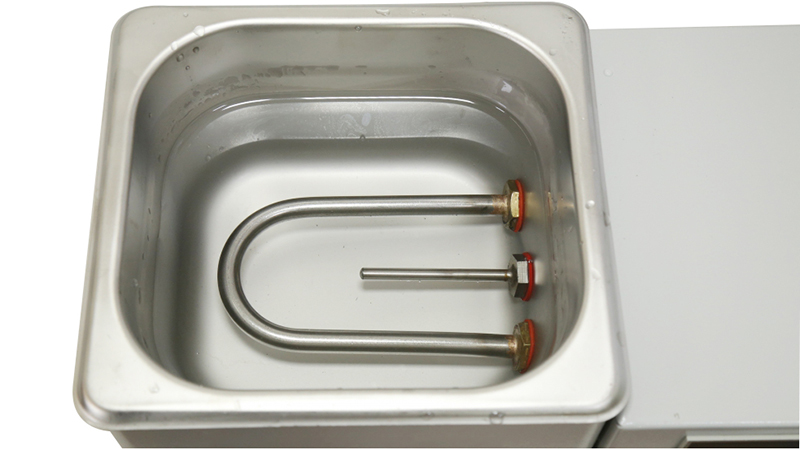

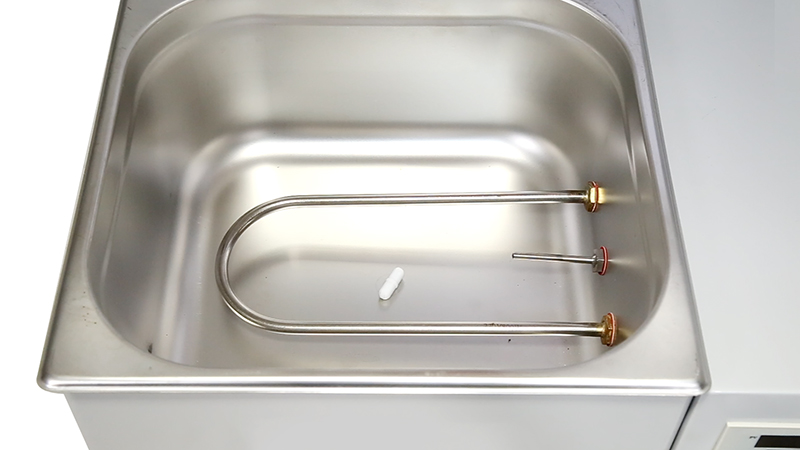

  • The U-shape electrothermal pipe is made from magnesium oxide and electrically heated wire so that delivers high thermal efficiency and low heat loss.
  • The perforated tray is made from 304 stainless steel that is easy-to-clean and resistant to corrosion to accommodate lab work.
  • The temperature control system is highly intelligent which supports self-tuning of PID parameters and can display temperature on the LED screen.
  • The body of water bath adopts cold rolled steel by sheet forming at one time. The outer surface is treated by spray painting which is anti-corrosive.

According to the chamber capacity, GUOHUA provides 6 different kinds of thermostatic control water bath for you to choose.

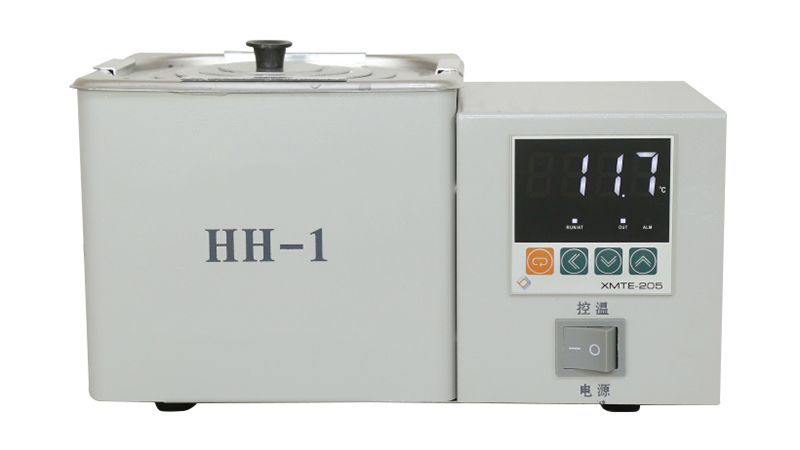

Single chamber thermostatic control water bath
Single chamber thermostatic control water bath Single chamber thermostatic control water bath
Single chamber thermostatic control water bath
  • Model: HH-1
  • Exterior dimensions: 280*160*170 mm
  • Interior dimensions: 150*140*100 mm
  • Internal temperature uniformity: ≤±1℃
  • Temperature ranges: from ambient to 100 ℃
  • Electrical: 110-240V, 300W
  • Gross weight: 3kg
  • Net weight: 2.6kg
Dual chamber thermostatic control water bath
  • Model: HH-2
  • Exterior dimensions: 440*180*240 mm
  • Interior dimensions: 300*150*150 mm
  • Internal temperature uniformity: ≤±1℃
  • Temperature ranges: from ambient to 100 ℃
  • Electrical: 110-240V, 500W
  • Gross weight: 4.75kg
  • Net weight: 4kg
Dual chamber thermostatic control water bath

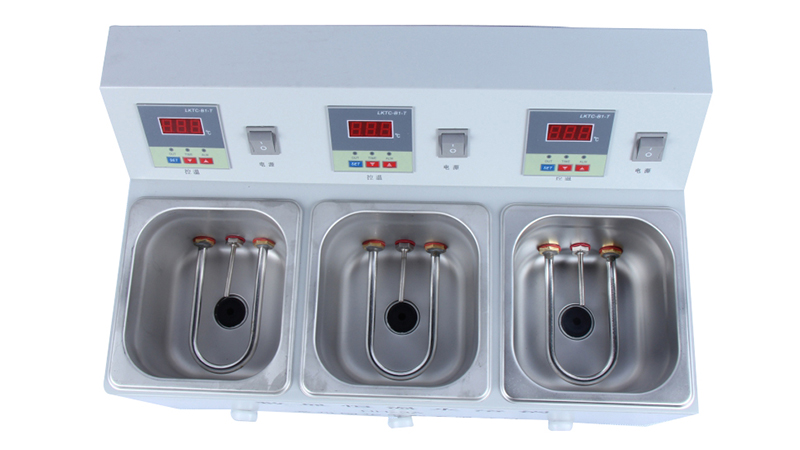

Three chamber thermostatic water bath (single row)
Three chamber thermostatic water bath (single row) Three chamber thermostatic water bath (single row)
Three chamber thermostatic water bath (single row)
  • Model: HH-3
  • Interior dimensions: 150*140*145 mm
  • Internal temperature uniformity: ≤±1 ℃
  • Temperature ranges: from ambient to 100 ℃
  • Electrical: 110-240V, 300W
  • Gross weight: 10kg
  • Net weight: 8.3kg
Four chamber thermostatic water bath (two rows)
Four chamber thermostatic water bath (two rows) Four chamber thermostatic water bath (two rows)
Four chamber thermostatic water bath (two rows)
  • Model: HH-4
  • Exterior dimensions: 470*310*250 mm
  • Interior dimensions: 325*300*150 mm
  • Internal temperature uniformity: ≤±0.5℃
  • Temperature ranges: from ambient to 100℃
  • Electrical: 110V-240V, 800W
  • Gross weight: 8.2kg
  • Net weight: 7kg

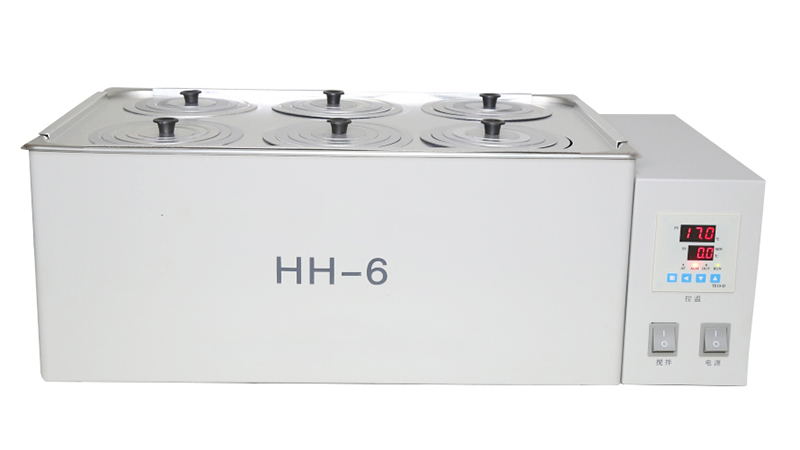

Six chamber thermostatic water bath (two row)
Six chamber thermostatic water bath (two row)
  • Model: HH-6
  • Exterior dimensions: 640*330*240 mm
  • Interior dimensions: 505*305*150 mm
  • Internal temperature uniformity: ≤±0.5℃
  • Temperature ranges: from ambient to 100℃
  • Electrical: 110-240V, 1200W
  • Gross weight: 10.6
  • Net weight: 9.3

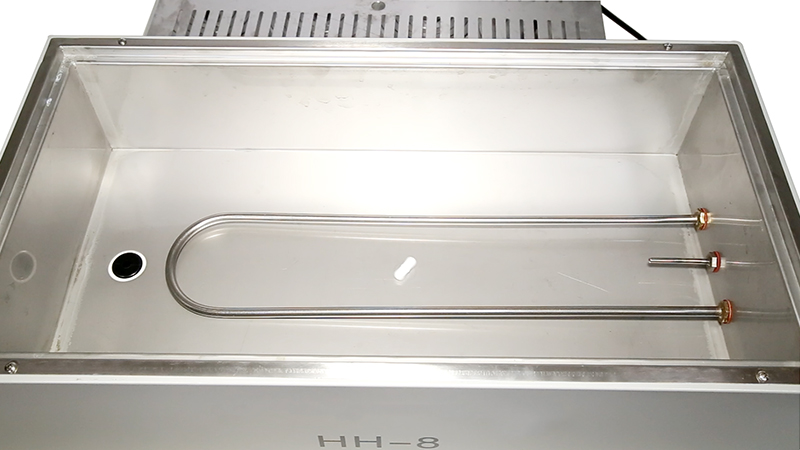

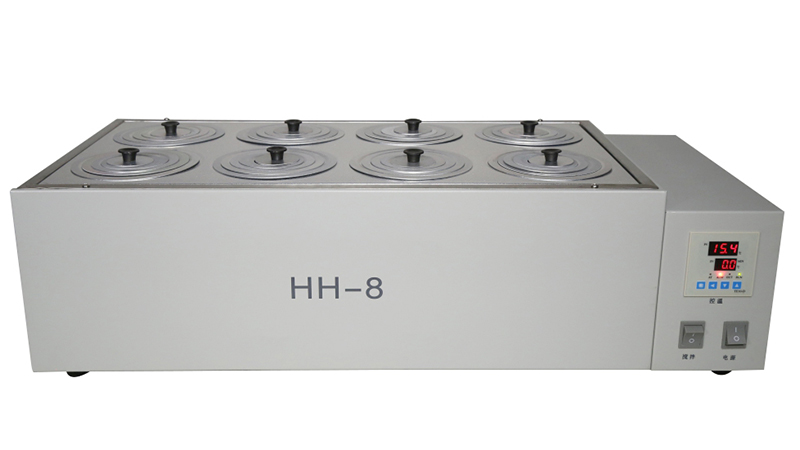

Eight chamber thermostatic water bath (two rows)
Eight chamber thermostatic water bath (two rows) Eight chamber thermostatic water bath (two rows)
Eight chamber thermostatic water bath (two rows)
  • Model: HH-8
  • Exterior dimensions: 750*370*160 mm
  • Interior dimensions: 620*320*120 mm
  • Internal temperature uniformity: ≤±0.5℃
  • Temperature ranges: from ambient to 100℃
  • Electrical: 110-240V, 1500W
  • Gross weight: 14kg
  • Net weight: 12.5kg
